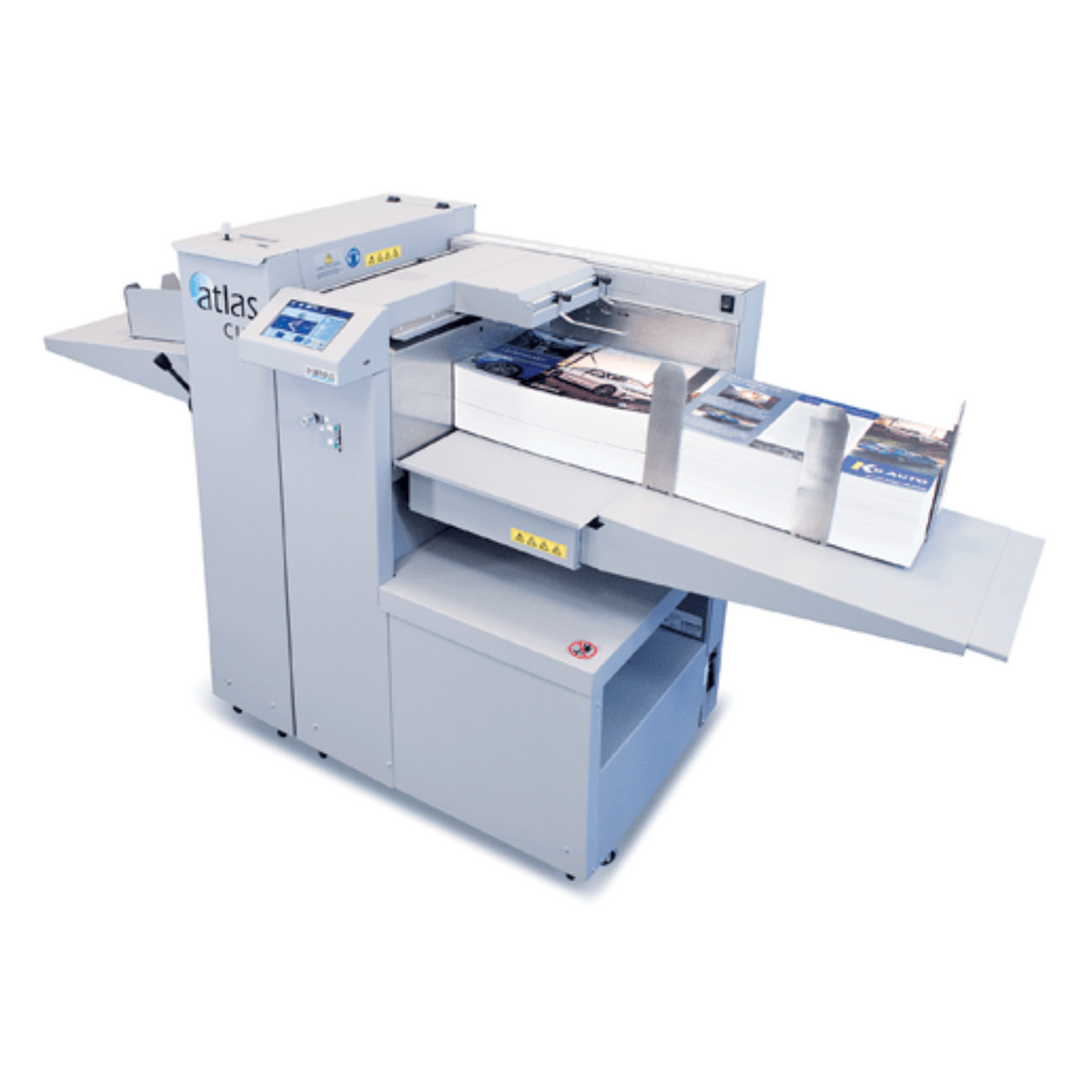

Formax Atlas C150 High-Speed Automatic Creaser

The Formax Atlas C150 High-Speed Automatic Creaser/Perforator is a robust solution for high-volume creasing and perforating, featuring an intuitive touchscreen control panel and a top vacuum pile feed system. Designed for efficiency and precision, this machine is perfect for professional print environments requiring a compact, reliable creaser.

Key Features:

• High-Speed Output: Processes up to 8,500 sheets per hour.
• Vacuum Top Feeding: Ensures accurate, edge-registered feeding for a variety of media types.
• Self-Adjusting Pile Feed Table: Handles media stacks up to 7.8” high, with automatic adjustments.
• Intuitive Touchscreen: A 7” full-color touchscreen control panel for easy job setup and programming.
• Programmable Jobs: Store and recall an unlimited number of custom jobs.
• Automatic Setup: Adjusts settings based on sheet size, weight, and crease/perforation type.
• Durable Creasing Matrix: Heavy-duty creasing matrix prevents cracking in digital prints.
• In-Line Rotary Perforation: Allows for creasing and perforating in a single pass.

Operating Features:

• Optical Sensors: Monitor sheet separation and make adjustments on-the-fly.
• Adjustable Outfeed Stacker: Holds up to 4.7” of processed media.
• Quick Change Creasing Matrix Kits: Easy swapping of creasing blades without tools.
• Ultrasonic Double Sheet Detection: Ensures feeding accuracy.
• Compact and Rugged Design: High-volume output in a small footprint.

Technical Features:

• High-Speed Processing: Up to 8,500 sheets per hour, with high-speed output.
• Infeed Table Extension: Accommodates media up to 51” in length.
• Flexible Creasing Options: Supports standard, narrow, and ultra-narrow creasing blades.
• Heavy-Duty Construction: Designed to handle a wide range of paper weights and sizes.

Options:

• Additional Creasing Matrix Kit: For up/down creasing and complex brochures.
• Cross/Partial Perforation Kit: For full and partial perforating along the width of the sheet.
• Narrow and Ultra Narrow Creasing Matrix Kits: Ideal for various paperweights.

Specifications:

• Speed: Up to 8,500 sheets per hour.
• Sheet Size: Max: 27.5” x 15” (51” x 15” with extension), Min: 8.3” x 3.89”.
• Paper Thickness: Max: 0.015” (400gsm), Min: 0.0035” (75gsm).
• Creases per Sheet: Up to 30.
• Max Loading Capacity: Up to 7.8”.
• Stacker Capacity: Up to 4.7”.
• Dimensions: 66.5” L x 28.7” W x 45.7” H (100” L with feed table extended).
• Weight: 551 lbs.
• Power: 100-240V, 50/60Hz, 8-4A.

The Formax Atlas C150 is an ideal addition to digital print environments, combining high-speed output, user-friendly features, and the ability to handle large media sizes efficiently.
