Description

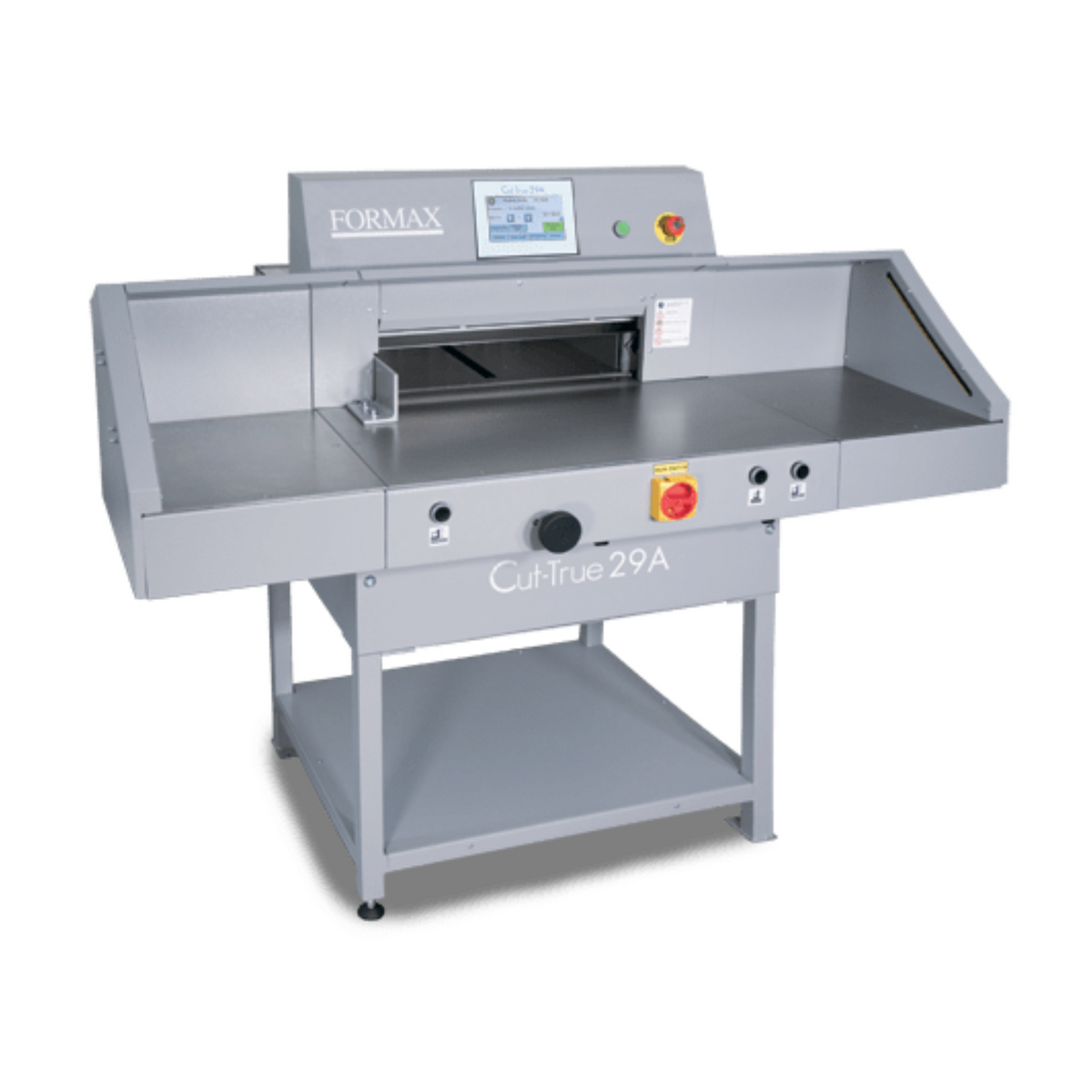

Formax Cut-True 29A Automatic Electric Guillotine Cutter
The Formax Cut-True 29A Electric Guillotine Paper Cutter offers precision cutting for paper stacks up to 20.5” wide. User-friendly features include a touchscreen control panel, automatically adjusting back gauge, and the capacity to program up to 100 jobs/100 cuts. An infrared light beam safety curtain ensures safety and convenience by shutting down operation if the light plane is interrupted.
Operation is simple: use the touchscreen control panel to program and select job settings, load a stack of paper up to 3.15” high, and set the back gauge using the touchscreen. The bright LED Cutting Line allows operators to see where the blade will cut and make fine adjustments. Electronically-controlled two-hand operation engages the hardened steel blade for crisp, accurate cuts every time.
Cutting accuracy is 0.1mm on paper stacks up to 80mm. The Cut-True 29A also features a special anti-friction surface with optional wide side tables, making it easier to maneuver large paper stock. A false clamp minimizes the risk of marking sensitive paper stock or perfect-bound books and can be removed to decrease the minimum cut length.
Standard safety features include a lock with key, blade lock, external blade depth adjustment, automatic blade return from any position, an easy-to-use blade change safety tool, and a wooden paper push for safe alignment.
The Cut-True 29A is perfect for transforming large sheets into brochures, invitations, and more with crisp, accurate cuts, making it a valuable addition to print shops and in-plant finishing operations.
Key Features:
- Hardened Steel Blade: Ensures accurate cuts and long life
- LED Cutting Line: Bright red LED line for precise adjustments
- Programmable Jobs: Stores up to 100 jobs/100 steps each
- Automatic Blade Return: Ensures safety and ease of use
- Infrared Safety Curtain: Shuts down operation if the light plane is interrupted
- Dual-Button Operation: Electronically controlled for added safety
Specifications:
- Cutting Action: Dual-button electric
- Max Cutting Width: 20.5” (520mm)
- Max Paper Stack Height: 3.15” (80mm)
- Programmable Jobs: Up to 100 programs with up to 100 steps each
- Touchscreen Features: Program jobs, alternate between inches/mm, paper eject function, business card cutting mode
- Length Behind Blade: 20.5” (520mm)
- Length in Front of Blade: 18.25” (464mm)
- Minimum Cut w/False Clamp: 1.6” (40mm)
- Minimum Cut w/o False Clamp: .98” (25mm)
- Table Size: 30.75” W x 15.75” D (781 x 400mm); 56” W x 15.75” D (1422 x 400mm) with optional wide side tables
- Clamp Style: Automatic, electronically adjustable
- Back Gauge Adjustment: Fully programmable using touchscreen, accurate to 0.1mm
- Blade Change Safety Tool: Included
- Dimensions: 49.25” H x 31” W x 53.25” D (1250mm H x 788mm W x 1352mm D)
- Dimensions w/optional side tables: 49.25” H x 61” W x 53.25” D (1250mm H x 1549mm W x 1352mm D)
- Weight: 683 lbs. (310kg)
- Power Supply: 220V, 60Hz, 20A dedicated line, NEMA 6-20P
