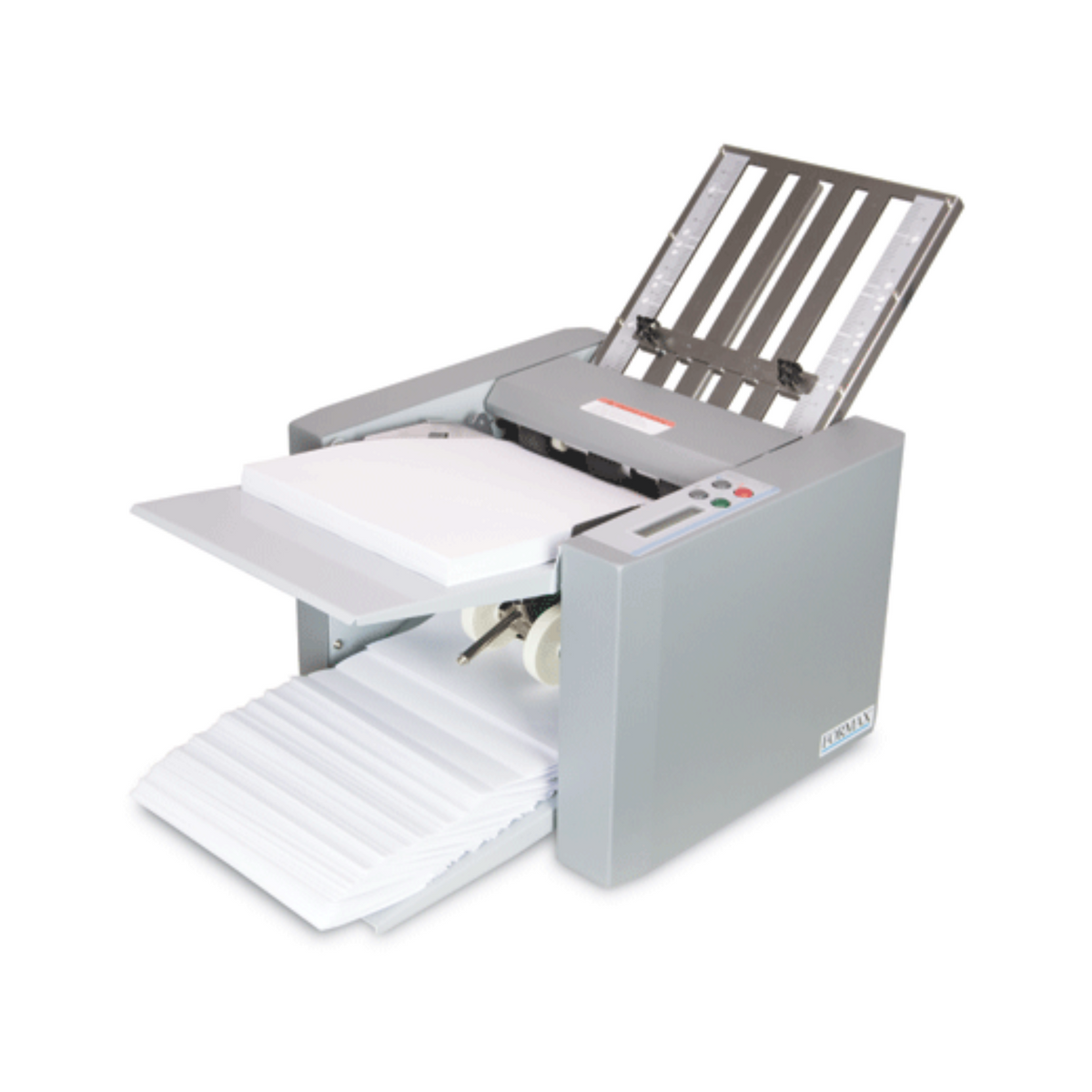

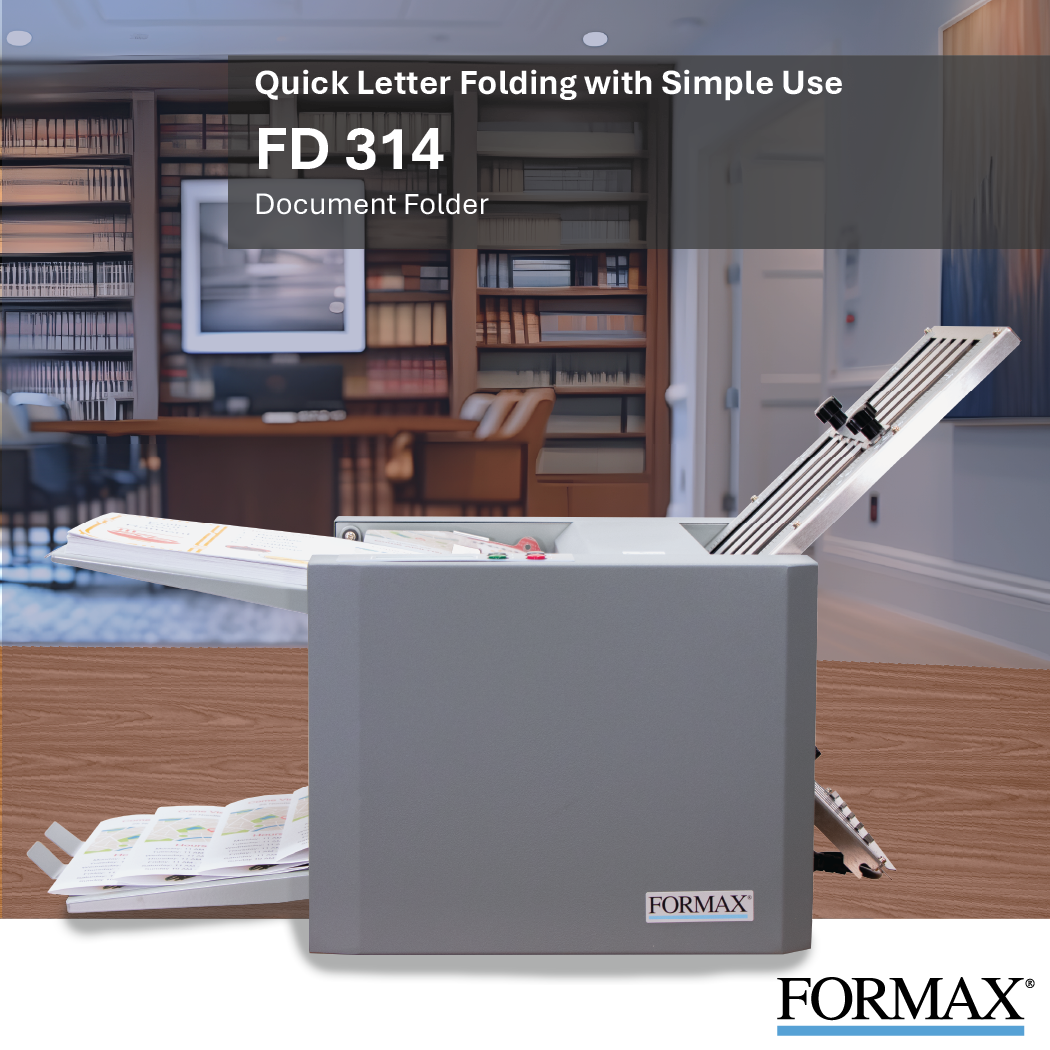

Formax FD 314 Desktop Office Folder
The FD 314 Office Desktop Folder provides an economical solution for low-volume folding projects. It combines a compact footprint with push-button controls, making it simple to use right out of the box. Fold plates are clearly marked for four common folds – letter, zig-zag, half, and double parallel – and can be easily adjusted for custom folds.

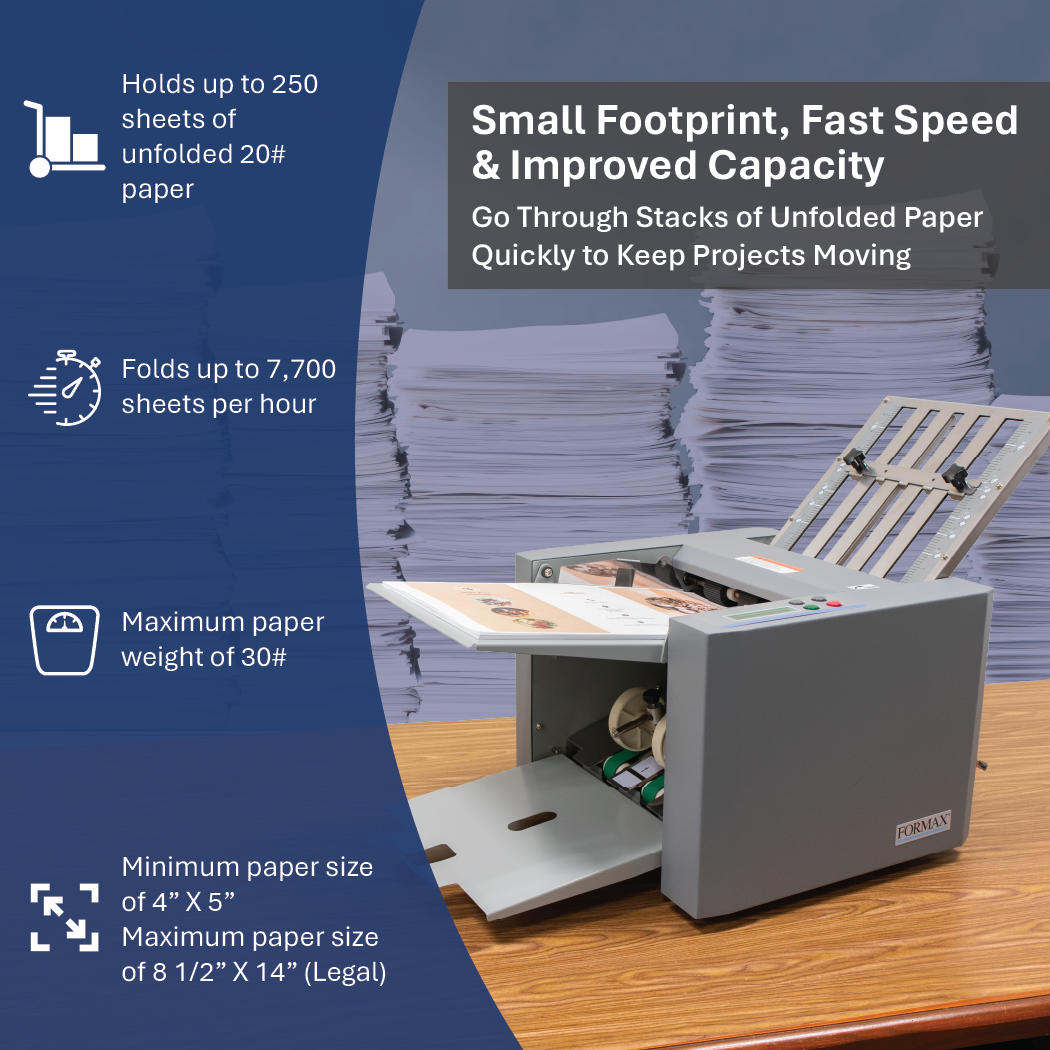

With a three-tire drop-in feed system, it processes 11” and 14” paper at speeds up to 7,700 sheets per hour and offers a hopper capacity of up to 250 sheets. The LCD control panel includes a resettable 3-digit counter and AutoBatch for processing a set number of sheets with a pause between sets. The built-in output conveyor features adjustable stacker wheels for neat, sequential stacking of folded pieces.
User-friendly fold settings and straightforward operation make this folder ideal for churches, schools, and offices that demand quick and easy setup with minimal adjustment.
Key Features

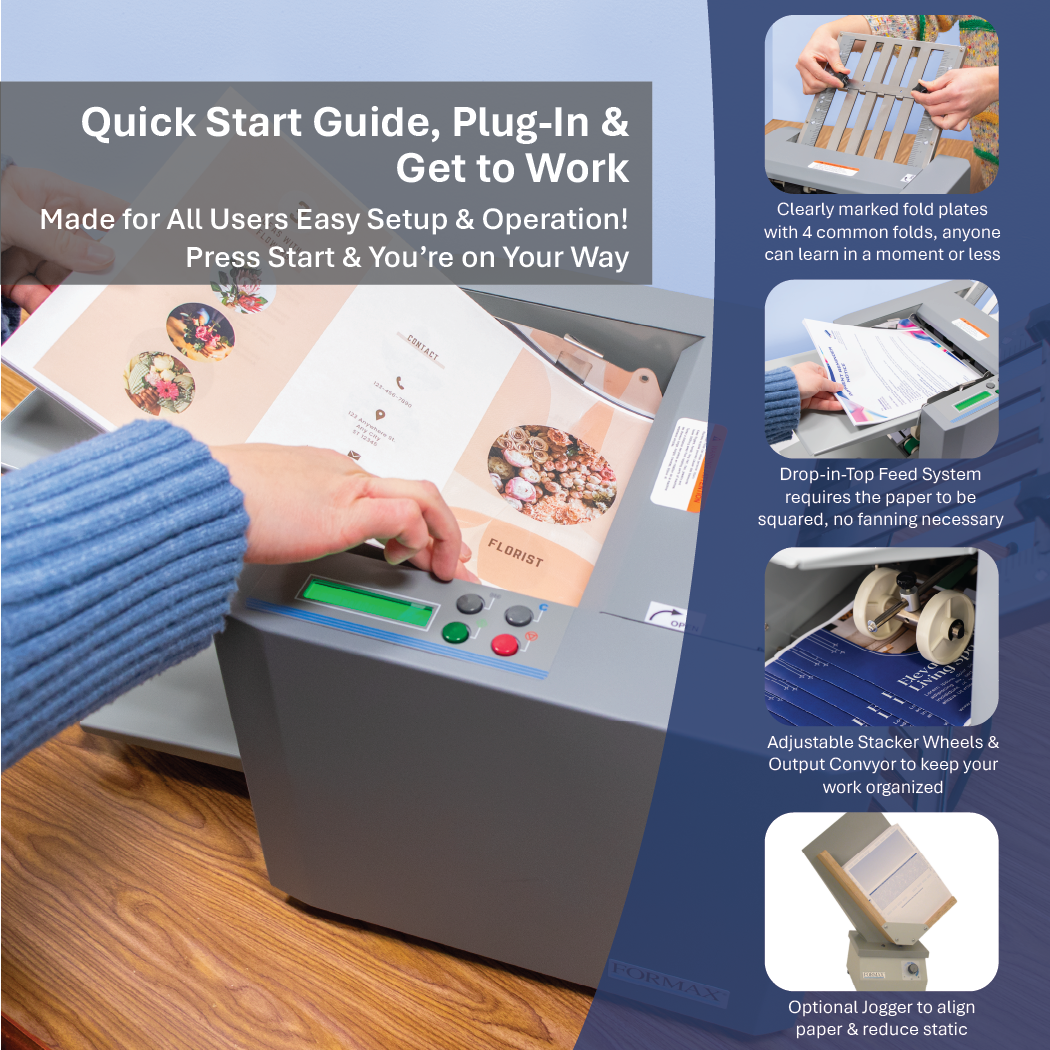

- Clearly-marked fold settings
- Push-button operation
- Speed: up to 7,700 sheets per hour
- LCD control panel
- Folds 11" and 14" paper
- Hopper capacity: 250 sheets

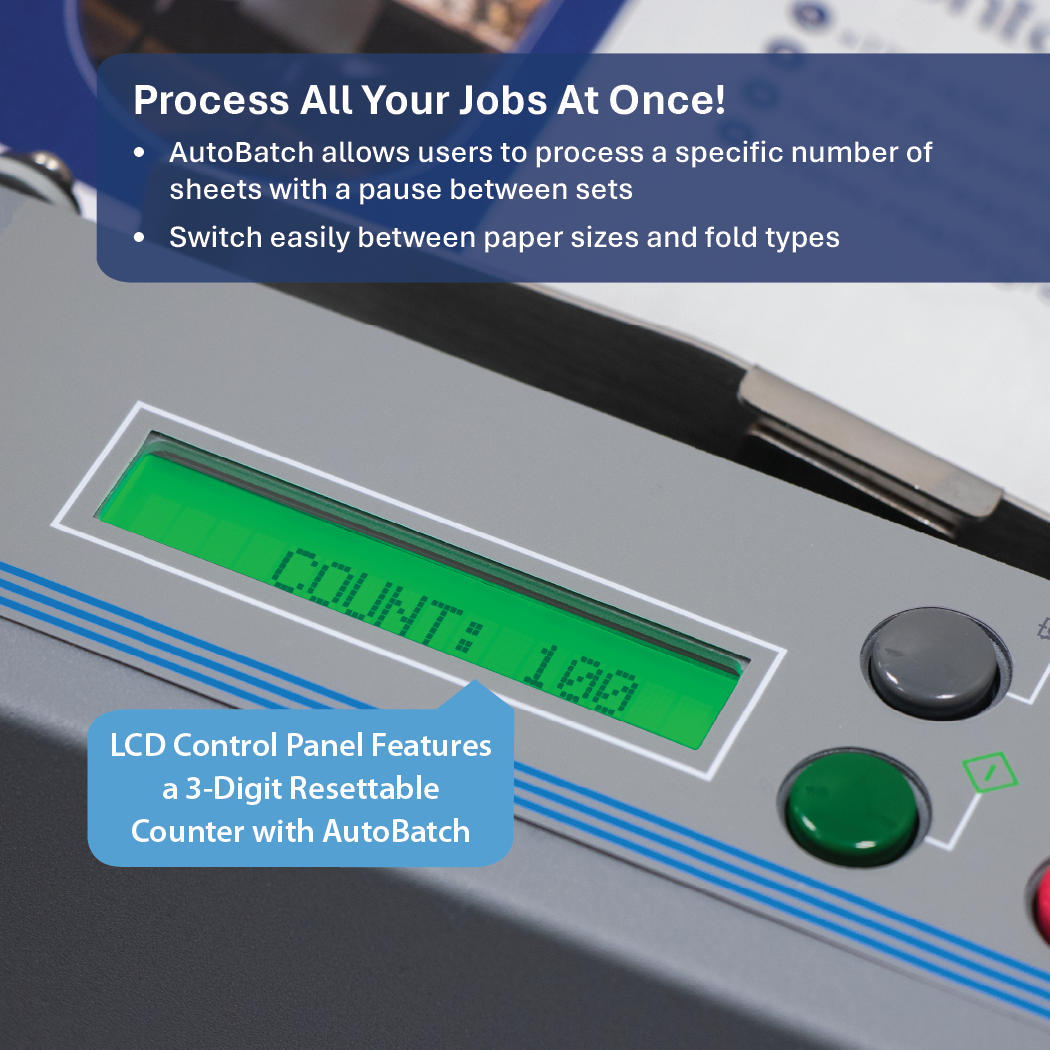

- AutoBatch
Specifications
-
Hopper Capacity: Up to 250 sheets 20# (75gsm)
-
Speed: Up to 7,700 sheets per hour
-
Paper Size: Min: 4” W x 5” L, Max: 8.5’’ W x 14” L
-
Paper Weight: Up to 30# (112gsm)
-
Fold Types: C, Z, V, Double Parallel
-

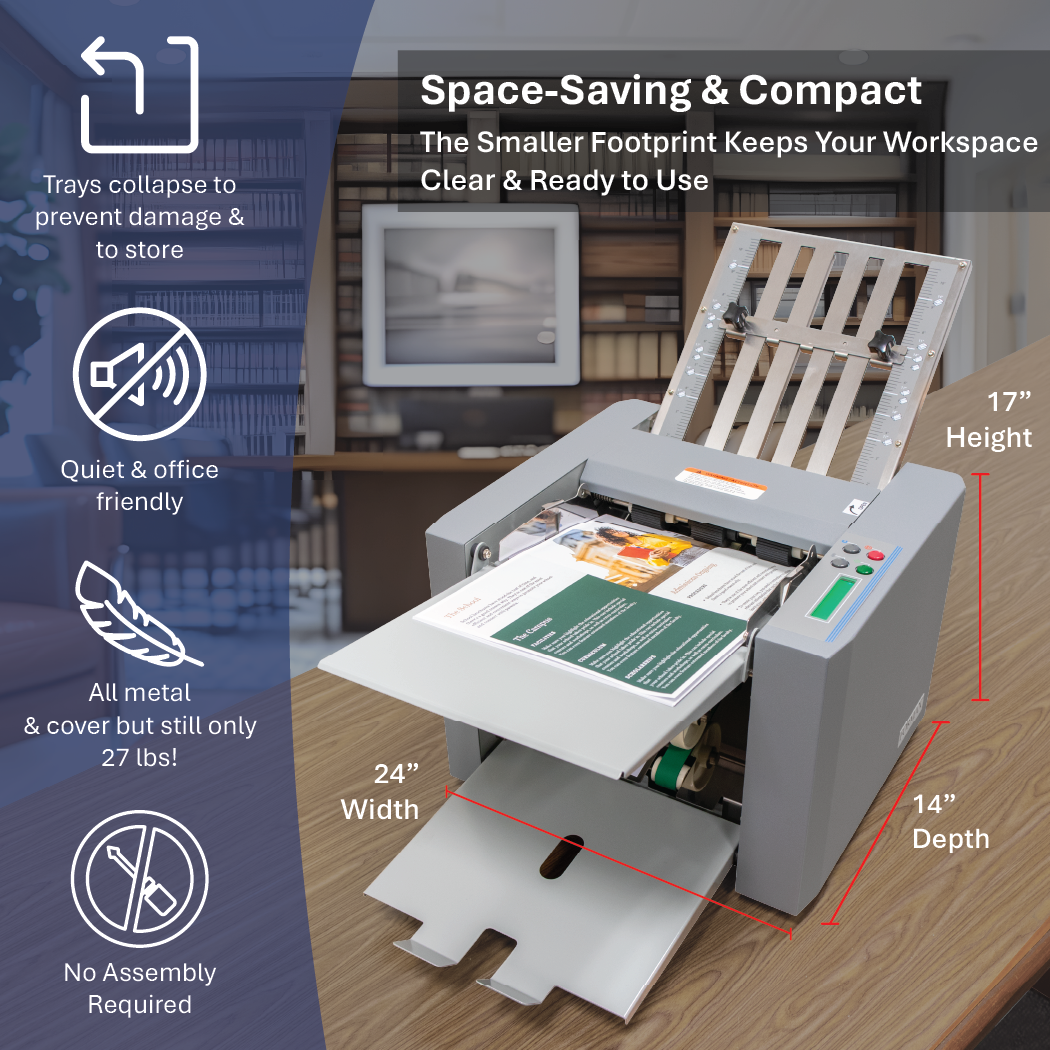

Dimensions: 24” L x 14” W x 17” H
-
Weight: 27 lbs
-
Power: 120V AC, 60Hz
-
Safety Certifications: CE Approved
Options
-
402 Series Jogger: Aligns pages and reduces static electricity commonly caused by printers
The FD 314 Office Desktop Folder provides user-friendly controls in a rugged, compact unit. Clearly-marked fold settings and push-button operation make it easy to use right out of the box. It’s capable of folding 11” and 14” paper at speeds up to 7,700 sheets per hour, with a hopper capacity of up to 250 sheets. Fold plates are pre-marked with four common fold settings - letter, zig-zag, half and double parallel - and can be easily adjusted for custom folds. The LCD control panel includes a resettable 3-digit counter and AutoBatch for processing a set number of sheets with a pause between sets. The built-in output conveyor features easily adjustable stacker wheels for neat, sequential stacking of folded pieces. The compact size and push-button operation make the FD 314 ideal for churches, schools, and offices that demand quick and easy setup with minimal adjustment.
